Chain Conveyor At The Top & Idler Gravity Roller Bottom For Pallet Return

Name: Chain Conveyor At The Top & Idler Gravity Roller Bottom For Pallet Return
Brand: KAYA TECHNOLOGY
Price: 750000.0 INR
Availability: InStock

Price 750000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Chain Conveyor At The Top & Idler Gravity Roller Bottom For Pallet Return Specification

Belt Type
NA (Chain driven)

Power Source
Electric Motor Driven

Features
Low Maintenance, Dual Level (Chain Top, Roller Bottom), Suitable for Heavy Pallets, Smooth & Quiet Operation

Surface Finish
Powder Coated / Painted

Thickness
3 mm - 6 mm (Frame and side structure)

Material
Mild Steel (MS), Powder Coated or Galvanized

Type
Chain Conveyor with Gravity Roller Return

Structure
Heavy-Duty Welded Steel Frame

Belt Conveyor
Not Included

Roller Conveyor
Gravity Rollers at Bottom for Pallet Return

Resistant Feature
Corrosion Resistant, Wear Resistant

Load Capacity
Up to 1500 kg per pallet

Voltage
415 V AC

Power
1.5 kW - 3 kW (Depending on drive unit)

Speed
0.1 to 0.5 m/s (variable depending on application)

Usage & Applications
Warehouse Automation, Pallet Return Lines, Material Handling, Logistics

Pallet Size Compatibility
800 mm x 1200 mm up to 1200 mm x 1200 mm

Installation
Floor Mounted with Adjustable Leveling Feet

Control System
Optional PLC Controlled with Sensors

Chain Type
Double Strand or Triple Strand Roller Chains

Frame Height
250 mm - 350 mm

Safety Features
Emergency Stop, Side Guard Rails

Operating Temperature
-10C to 50C

Noise Level
< 70 dB (A) under normal operation

Drive Unit
SEW/Bonfiglioli or Equivalent Geared Motor

Roller Diameter
50 mm - 76 mm

About Chain Conveyor At The Top & Idler Gravity Roller Bottom For Pallet Return

Chain Conveyor at the Top & Idler Gravity Roller Bottom for Pallet Return Description

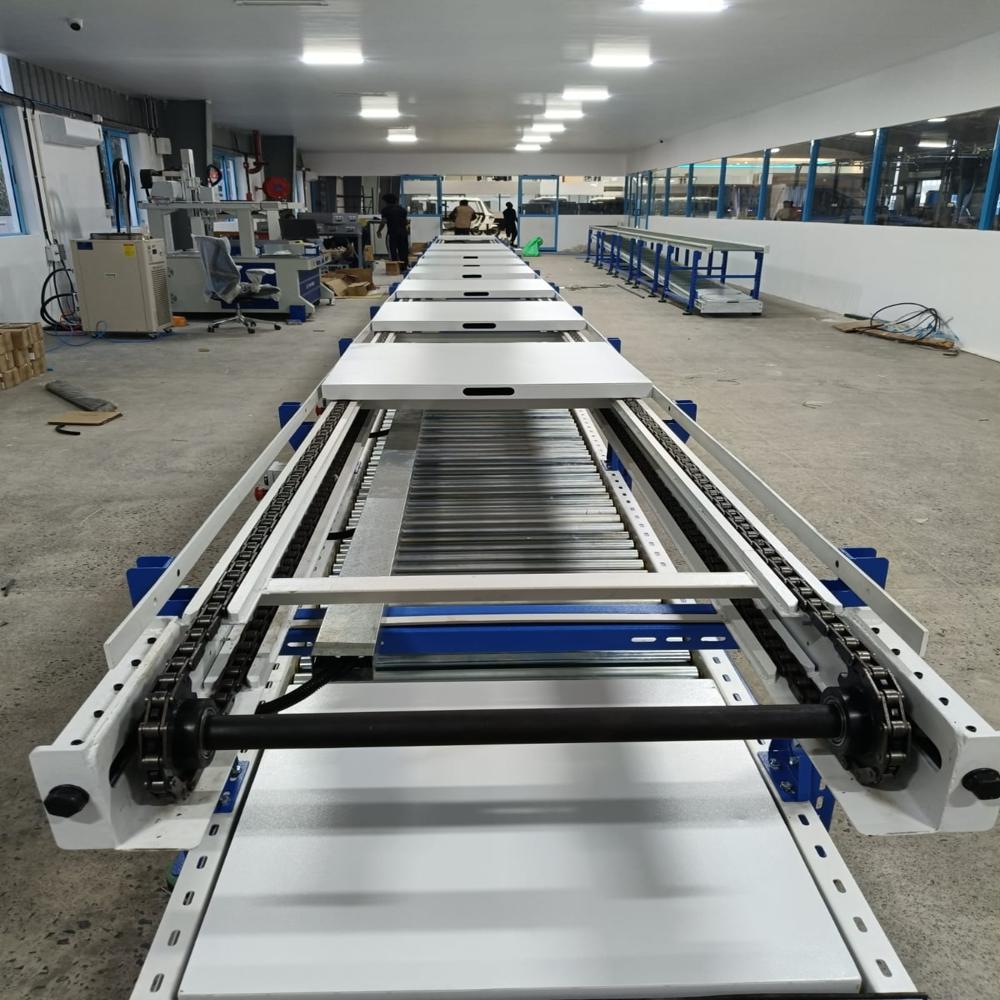

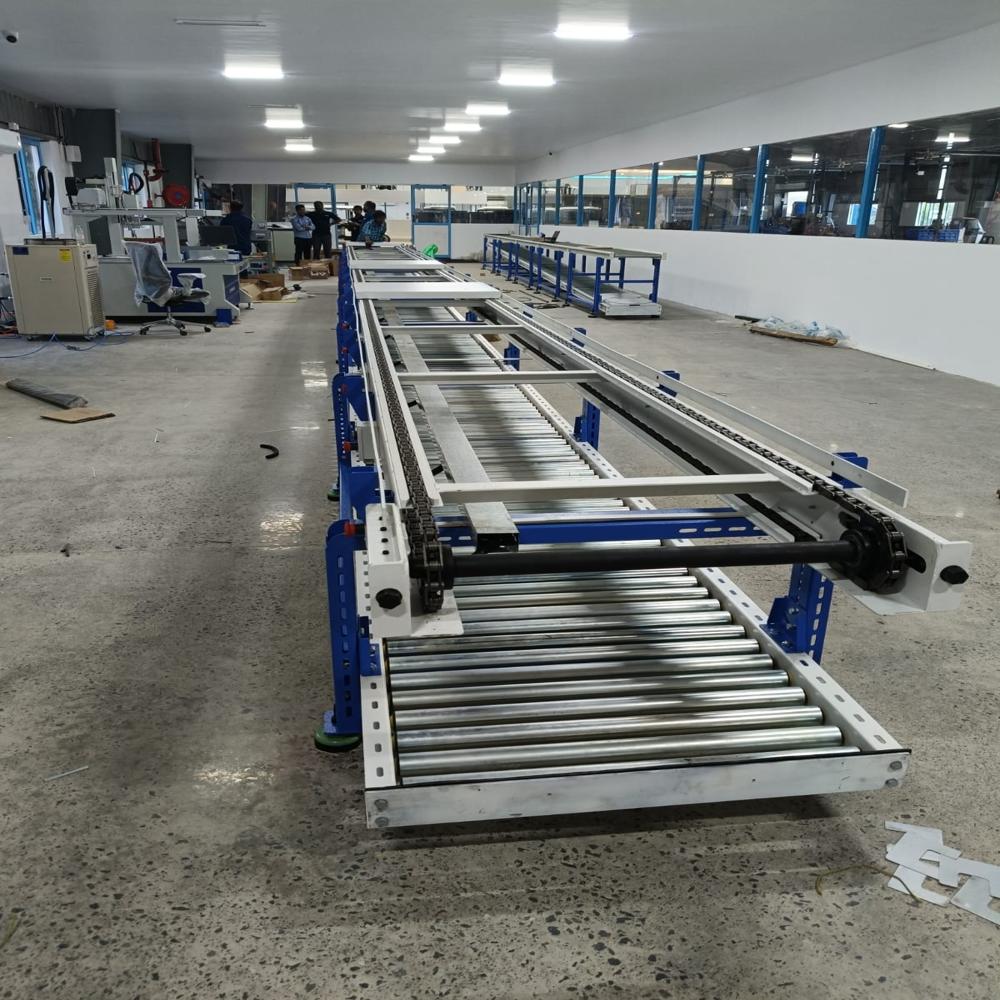

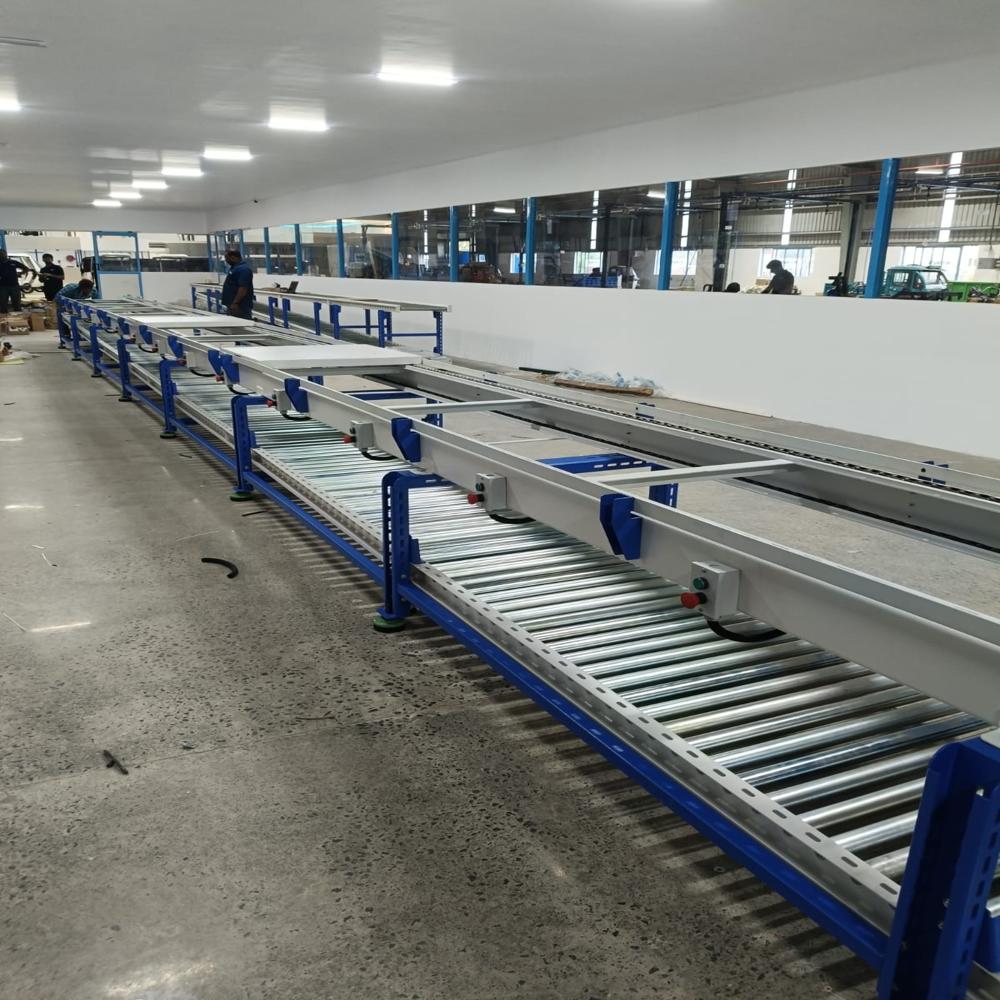

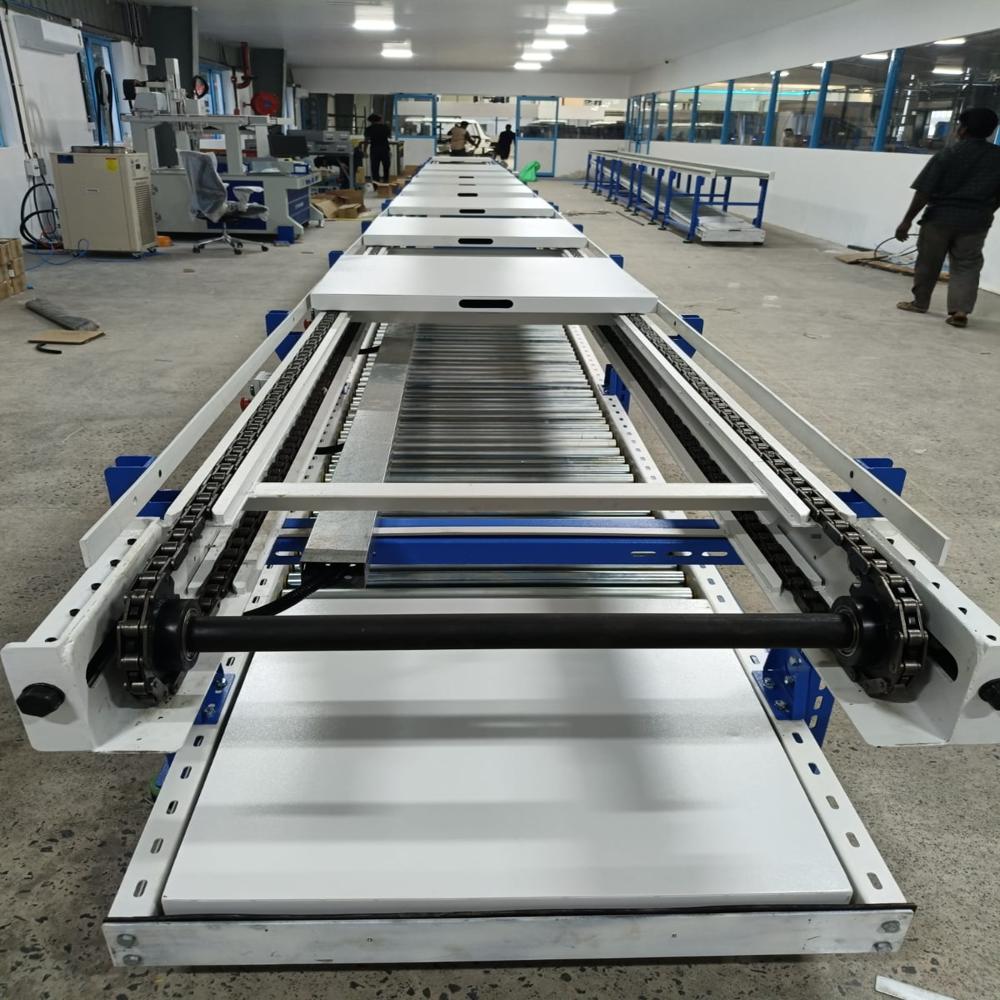

This system is designed for efficient pallet handling and return in industrial material-handling applications. The top section consists of a powered chain conveyor, used to transport loaded pallets smoothly through the production or assembly line. The chain drive ensures stable movement of heavy pallets with proper alignment and controlled speed.

The bottom section consists of idler gravity rollers, which are used for the empty pallet return system. After unloading, pallets move back to the starting point by gravity, reducing the need for powered drives and saving energy. The idler rollers provide smooth and low-maintenance pallet movement with minimal friction.

This dual-level conveyor system improves workflow efficiency, reduces manual handling, optimizes space utilization, and enhances productivity in pallet-based operations such as warehouses, packaging lines, and manufacturing plants.

If you want, I can also give you a short version or Tamil description for quotation/catalogue use.

Robust Dual-Level Conveyor Design

This conveyor system features a dual-level design, utilizing a high-performance chain conveyor at the top and gravity rollers at the bottom specifically for pallet return applications. Its heavy-duty welded steel frame, combined with double or triple strand roller chains, enables a stable and dependable operation for handling heavy pallets across various industries.

Adaptable and Low-Maintenance Operation

Tailored for warehouse and logistics environments, the conveyor accommodates various pallet sizes and provides smooth pallet transfer with variable speeds up to 0.5 m/s. The adjustable leveling feet aid precise installation, while powder-coated or galvanized finishes ensure longevity and minimal upkeep, making it suitable for demanding conditions and continuous use.

Advanced Safety and Control Features

Safety is ensured by integrated emergency stop buttons and side guard rails, delivering secure operation for both staff and materials. With an optional PLC-based control system, automatic pallet movement and sensor integration are achievable, enhancing productivity and reducing manual labor.

FAQ's of Chain Conveyor At The Top & Idler Gravity Roller Bottom For Pallet Return:

Q: How does the chain conveyor with gravity roller bottom facilitate pallet return operations?

A: The conveyor system utilizes a chain conveyor on top for forward pallet transport and gravity rollers at the bottom for smooth, passive return of empty pallets, streamlining material flow in applications such as warehouse automation and pallet return lines.

Q: What pallet sizes and loads can this conveyor accommodate?

A: The unit is compatible with pallet sizes from 800 mm x 1200 mm up to 1200 mm x 1200 mm and is engineered to handle loads up to 1500 kg per pallet, making it versatile for various material handling needs.

Q: Where is this conveyor system typically installed and used?

A: It is floor-mounted with adjustable leveling feet and is most commonly installed in warehouses, logistics centers, and material handling lines where efficient pallet movement and return are essential.

Q: What safety features are included with this chain conveyor system?

A: Safety is enhanced by an emergency stop mechanism and side guard rails, helping to prevent accidents and protect both operators and goods during operation.

Q: What are the maintenance requirements and key benefits of this conveyor?

A: The system is built with a low-maintenance design, corrosion and wear-resistant materials, and a powder-coated surface. This ensures smooth, reliable operation with reduced downtime and long service life.

Q: Can the conveyor operate under varying environmental conditions?

A: Yes, it is functional in a wide temperature range of -10C to 50C, ensuring reliable performance in cold storage or warmer warehouse environments.

Q: How does the optional PLC-controlled system enhance operation?

A: The PLC-controlled system allows for programmable automation, the integration of sensors for monitoring, and adaptation to specific workflow requirements, improving efficiency, consistency, and safety in material handling processes.
