Scissor Lift with Zip Crane

Name: Scissor Lift with Zip Crane
Brand: KAYA TECHNOLOGY
Price: 650000.0 INR
Availability: InStock

Price 650000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Scissor Lift with Zip Crane Specification

Voltage
380V / 415V, 3 Phase

Door Opening Size
Customized

Type
Scissor Lift with Zip Crane Attachment

Load Capacity
500 Kilograms (kg)

Hoist Way Size
Customized

Usage
Material Handling, Loading and Unloading

Inclination
0 (Vertical Lift)

Noise Level
70 dB

Overhead Height
Min. 2500 mm

Car Dimension
Customized as per requirement

Machine Room Size
Not Required (Self-contained Unit)

Pit Depth
Min. 300 mm

Material
Mild Steel

Drive Type
Hydraulic

Power Supply
Electric

Speed
6 - 10 m/min

Max. Lifting Height
Up to 9 meters

Max. Lifting Weight
500 kg

Mechanism Type
Hydraulic Scissor Mechanism

Working Temperature
-10C to +50C

Control Device
Push Button Control / Remote Control

Safety Device
Safety Locks, Emergency Stop, Overload Protection

Capacity
250 Kg

Crane Type
Integrated Zip Crane

Crane Capacity
200 kg

Platform Material
Anti-skid Chequered Plate

Operating Mode
Manual & Electrical

Lifting Method
Hydraulic Cylinders

Installation
Indoor / Outdoor

Platform Size
Standard 2000 mm x 1000 mm or Customized

Color
Yellow/Custom

Compliance
CE Certified

Paint Finish
Powder Coated

Power Consumption
3 kW

Crane Swing Angle
180 Rotatable

Mobility
Stationary or Portable (with Wheels on Request)

Application
Warehouse, Factory, Construction Site, Logistics

About Scissor Lift with Zip Crane

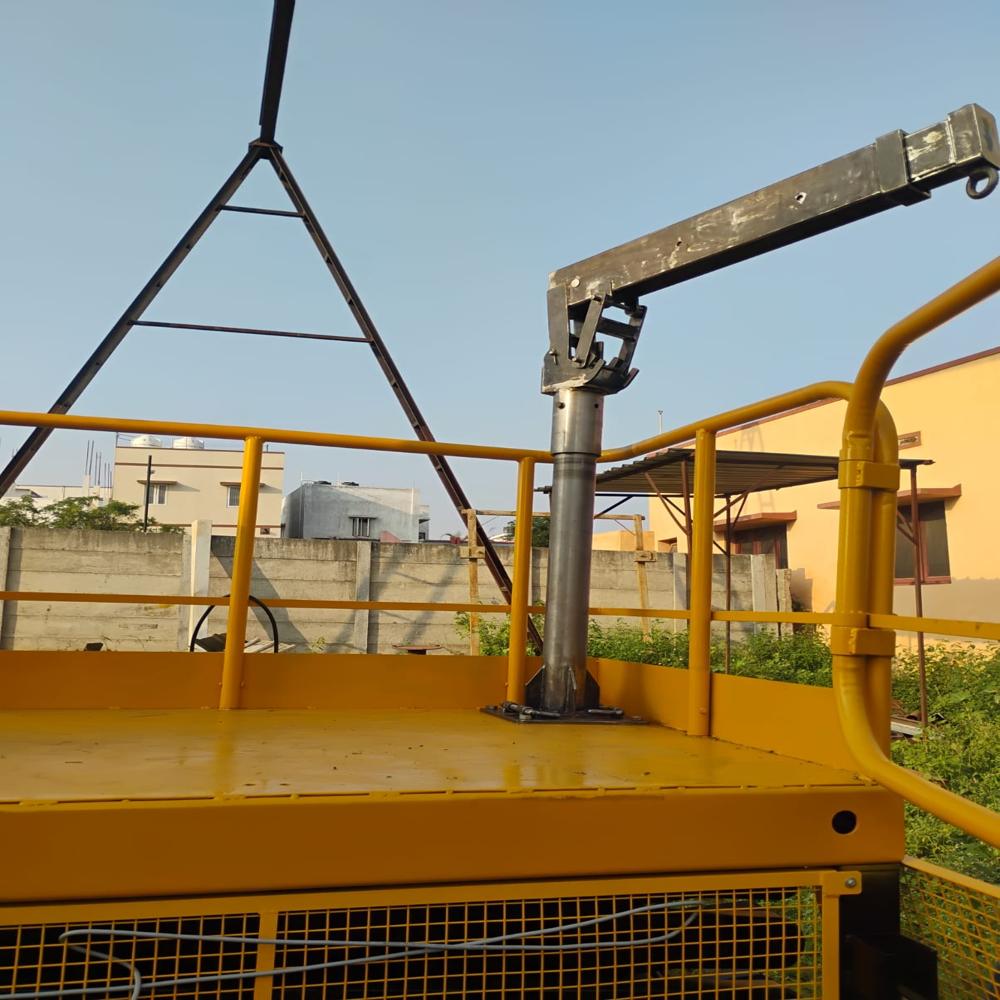

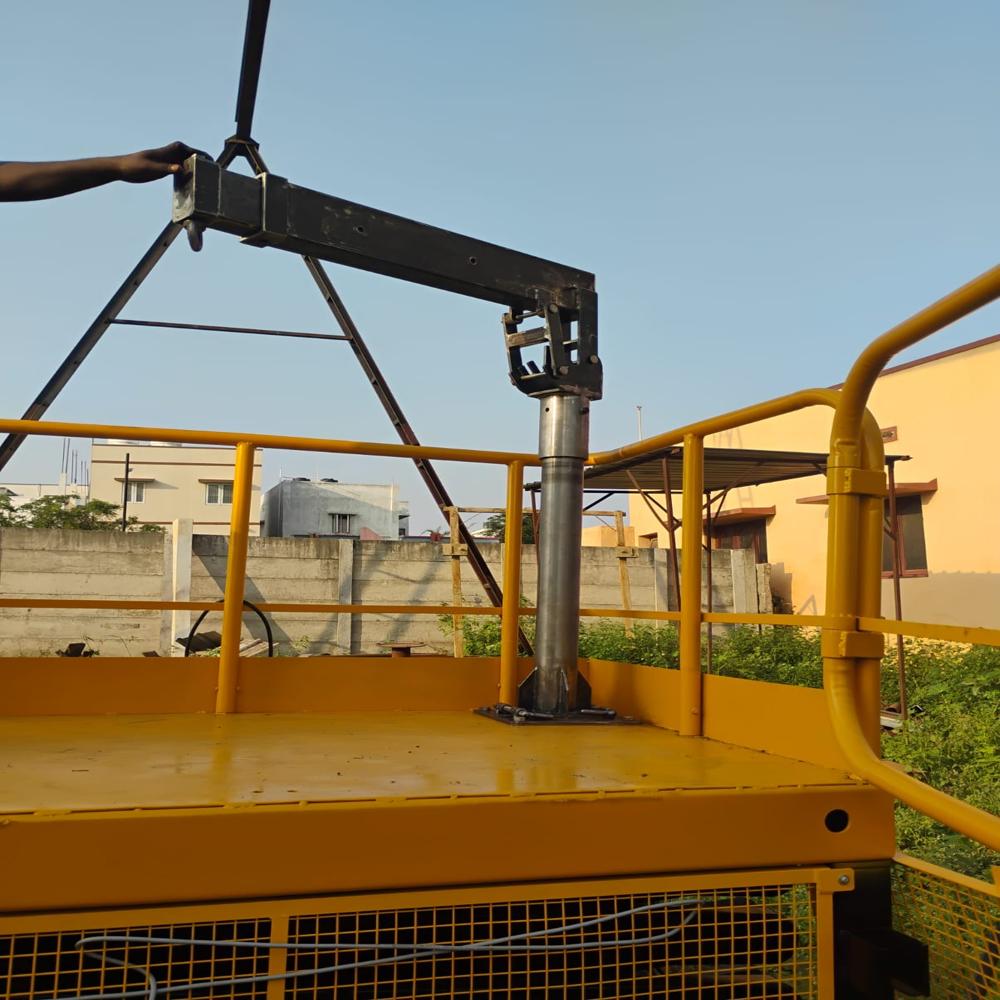

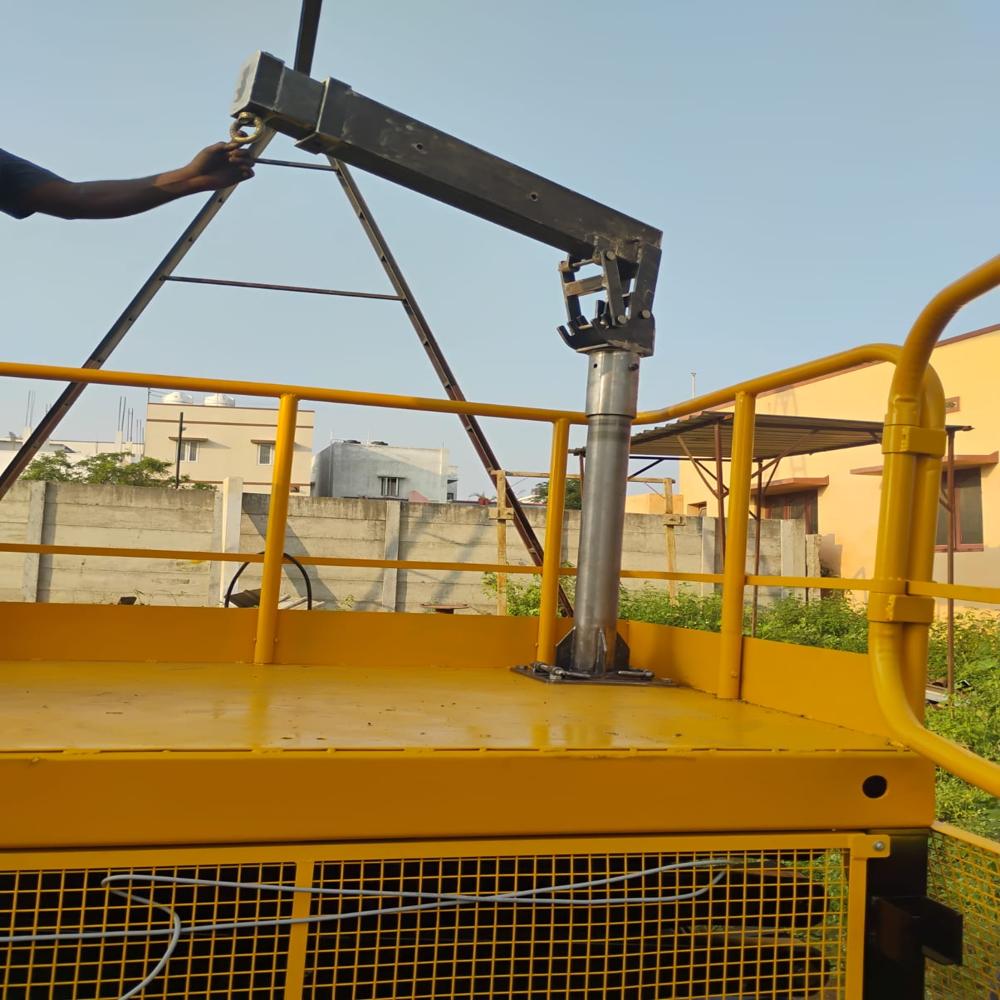

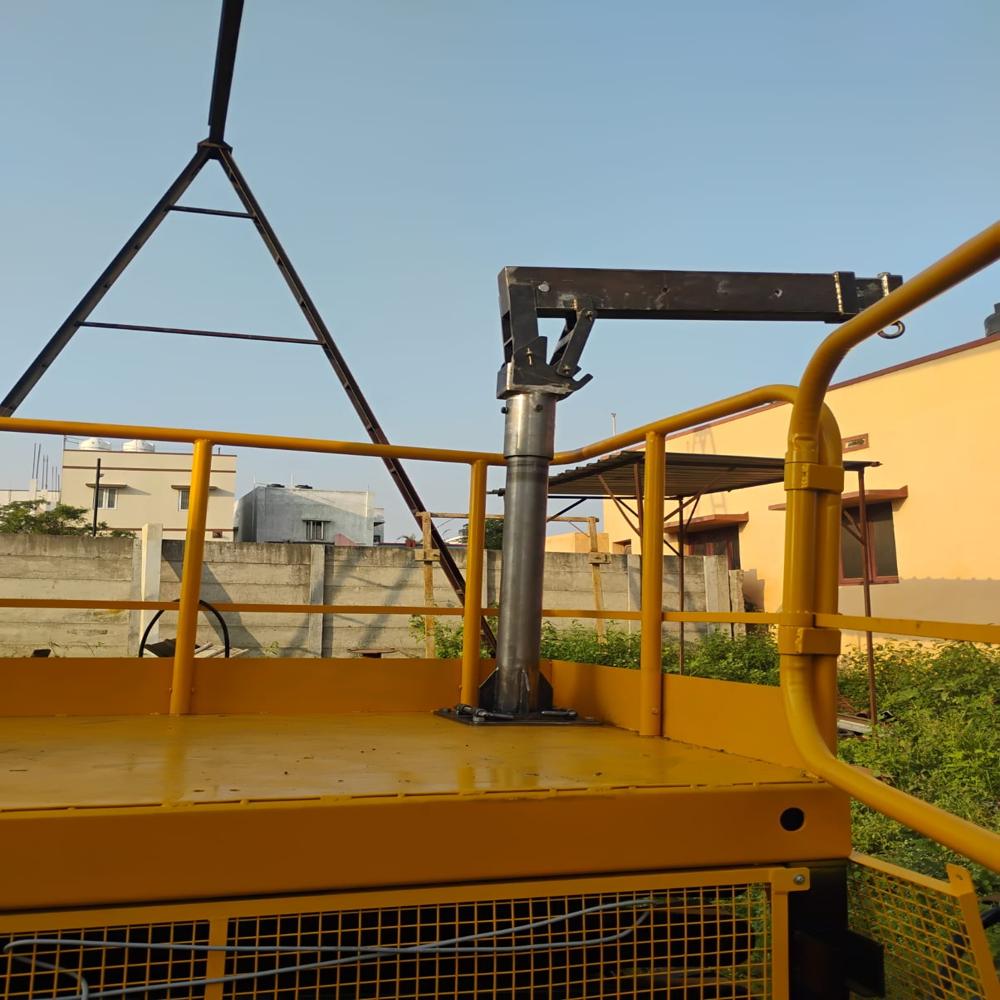

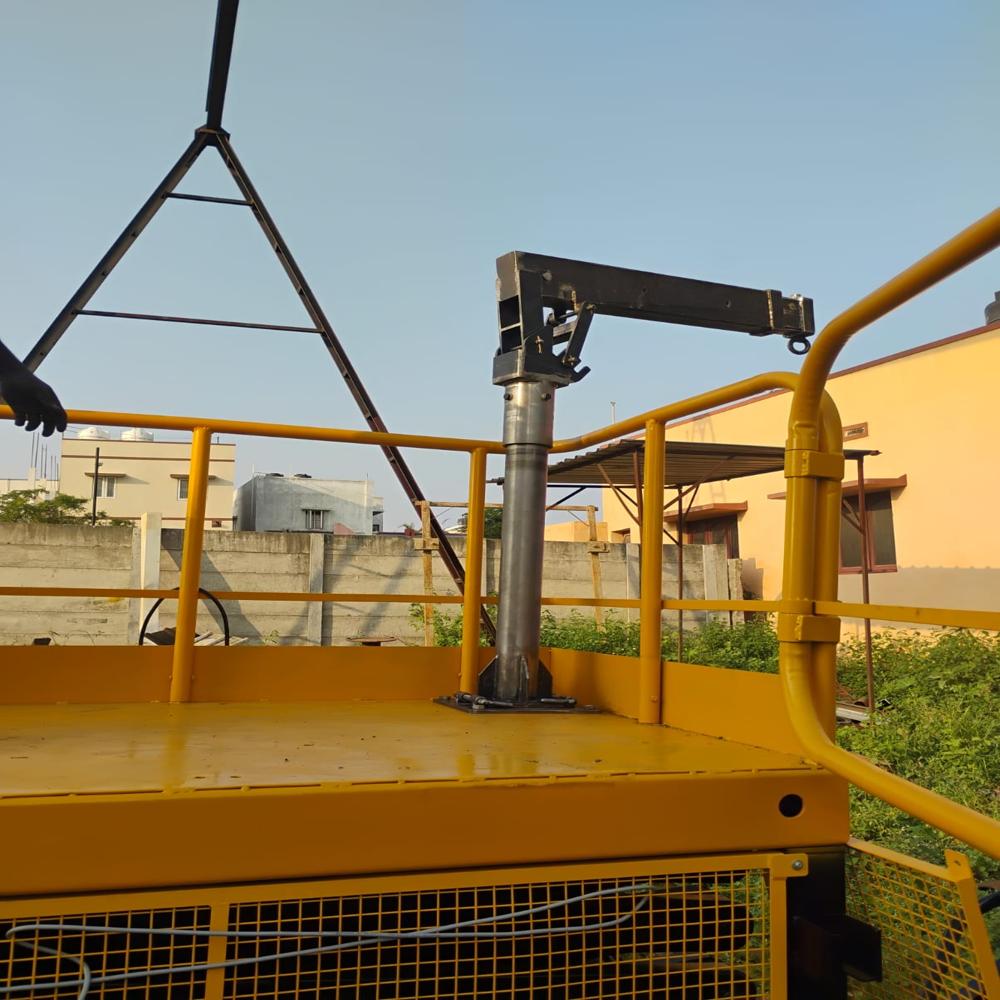

AScissor Lift with Zip Craneis a combination aerial work platform that integrates two types of lifting equipment into one unit to improve versatility, reach, and productivity on job sites.

Ascissor liftis a vertical-lift platform that raises workers and materials straight up using crisscrossing (scissor-style) supports. Azip crane(sometimes called a mini crane, jib crane, or telescopic work arm) is a small lifting arm mounted on the lift that can extend, rotate, and hoist loads.

Integrated Versatility and Safety

This lift combines robust material handling capabilities with an integrated zip crane, providing effortless vertical and lateral movement of heavy loads. Powder-coated mild steel construction, safety locks, and advanced hydraulic cylinders guarantee both durability and operator safety. The anti-skid chequered platform minimizes slipping risks, making it ideal for demanding tasks.

Customizable for Diverse Applications

Choose from standard or customized platform sizes, door openings, car dimensions, and hoist ways to suit unique installation needs. The scissor lift is adaptable for both indoor and outdoor environments, and can be supplied with or without mobility features, ensuring seamless integration into your operational workflow.

FAQ's of Scissor Lift with Zip Crane:

Q: How does the integrated zip crane enhance the functionality of the scissor lift?

A: The integrated zip crane, with a 180 rotatable arm and 200 kg lifting capacity, allows users to easily transfer materials on or off the scissor lift platform. This provides superior mobility and efficiency for loading, unloading, and relocating heavy items within warehouses, factories, and construction sites.

Q: What are the operating modes and how do they benefit different users?

A: The lift can be operated manually or electrically. Electric mode ensures quick and effortless lifting, while manual allows for use during power outages or in locations with limited electrical supply, offering great flexibility and reliability for varied work environments.

Q: Where can this scissor lift with zip crane be installed and used effectively?

A: The machine is suitable for indoor and outdoor installations, including warehouses, manufacturing plants, construction sites, and logistics hubs. Optional mobility (stationary or with wheels) accommodates the operational layout and space constraints of diverse facilities.

Q: What customization options are available for this scissor lift?

A: You can customize platform size, car dimension, door opening size, hoist way size, and color. This ensures that the lift fits specific site requirements and application needs, while also aligning with your facility's design preferences.

Q: How does the hydraulic scissor mechanism ensure efficient and safe operation?

A: The hydraulic cylinders deliver stable, controlled lifting and lowering, supporting up to 500 kg (platform) and 200 kg (crane). Safety features like emergency stop, safety locks, and overload protection further enhance operational safety and reliability.

Q: What are the benefits of the anti-skid chequered plate platform material?

A: The anti-skid chequered plate offers secure footing and reduces the risk of slips during loading and unloading, improving safety for operators handling heavy or bulky materials.

Q: What is the maintenance process for this equipment?

A: Routine maintenance involves visual inspection of hydraulic systems, checking fluid levels, and ensuring the integrity of safety mechanisms. Simple upkeep and periodic servicing extend the machine's life while preserving CE-compliant safety standards.
