SS Screw Conveyor

Name: SS Screw Conveyor
Brand: KAYA TECHNOLOGY
Price: 297000.0 INR
Availability: InStock

Price 297000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

SS Screw Conveyor Specification

Thickness
3 - 8 mm

Power Source
Electric

Surface Finish
Polished / Matt

Features
Easy cleaning, robust construction, minimal maintenance

Material
Stainless Steel (SS 304/316)

Type
Screw Conveyor

Structure
Shafted, U-trough

Belt Conveyor
No

Roller Conveyor
No

Vertical Conveyor
No

Pneumatic Conveyor
No

Resistant Feature
Corrosion Resistant

Load Capacity
Customized as per application

Voltage
220-440 V

Power
1 - 5 HP

Speed
Variable, as required

Usage & Applications
Food industry, chemical industry, pharmaceuticals, bulk materials handling

Maintenance
Low maintenance design

Noise Level
Low

Diameter
100 mm to 500 mm

Control System
Manual/Automatic

Operating Environment
Suitable for wet and dry conditions

Mounting Type
Floor Mounted or Trolley Mounted

Discharge Height
Customizable as per installation

Drive Type
Direct or Chain Driven

Inclination Angle
0 to 45 (optional)

Feed Option
Multiple feed inlet options available

Length
1 meter to 12 meters (customized)

About SS Screw Conveyor

SS Screw Conveyor Description

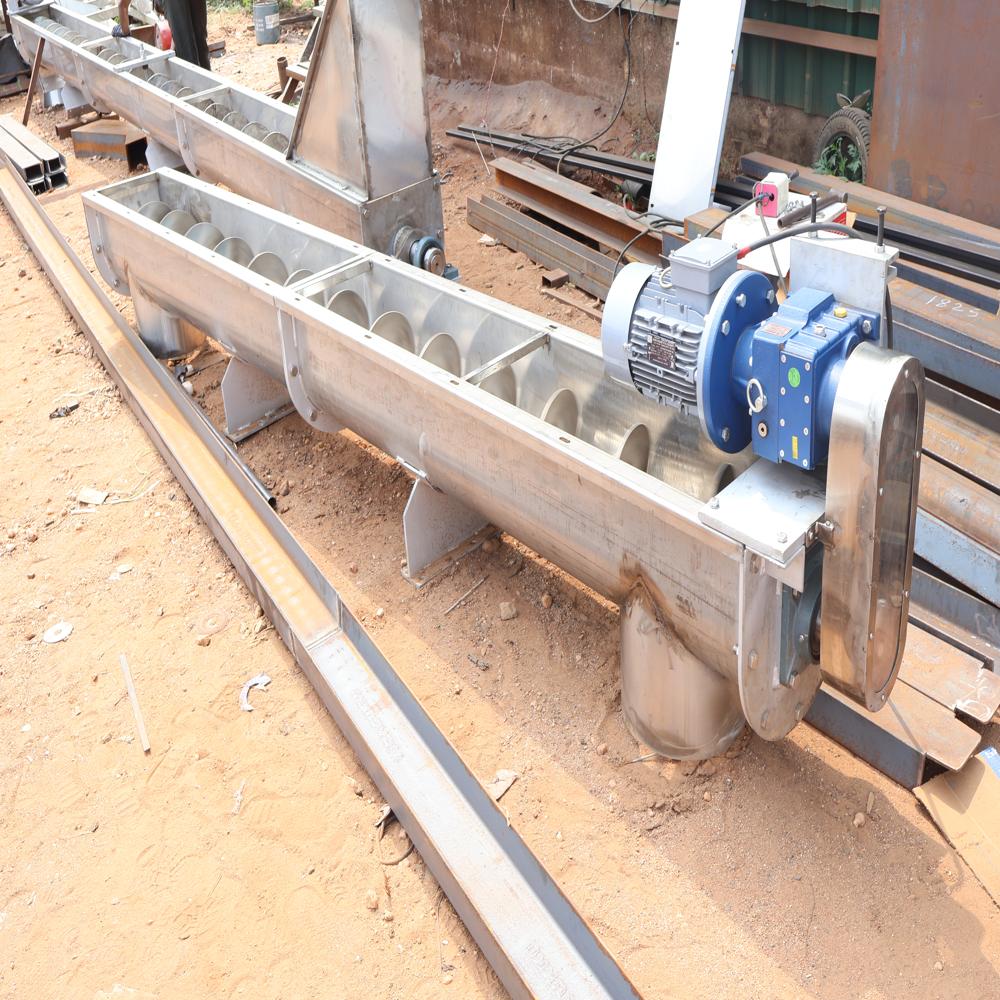

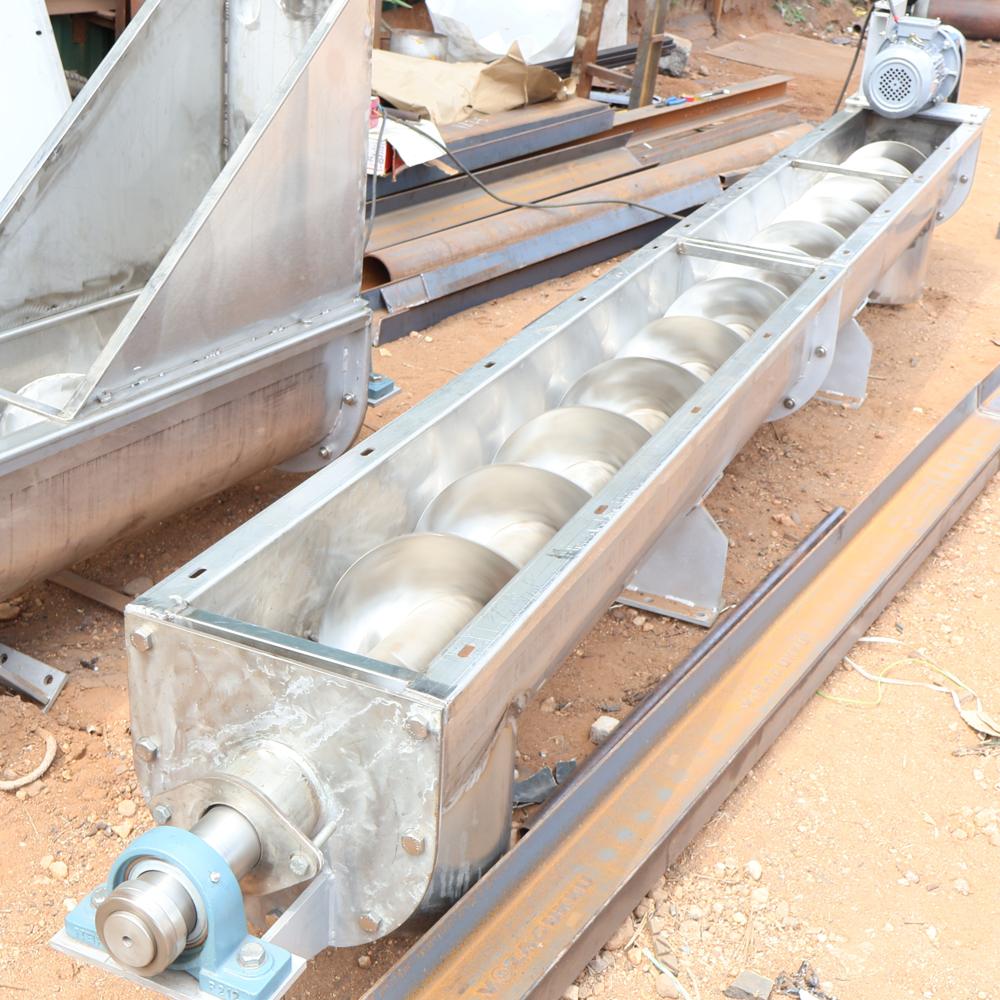

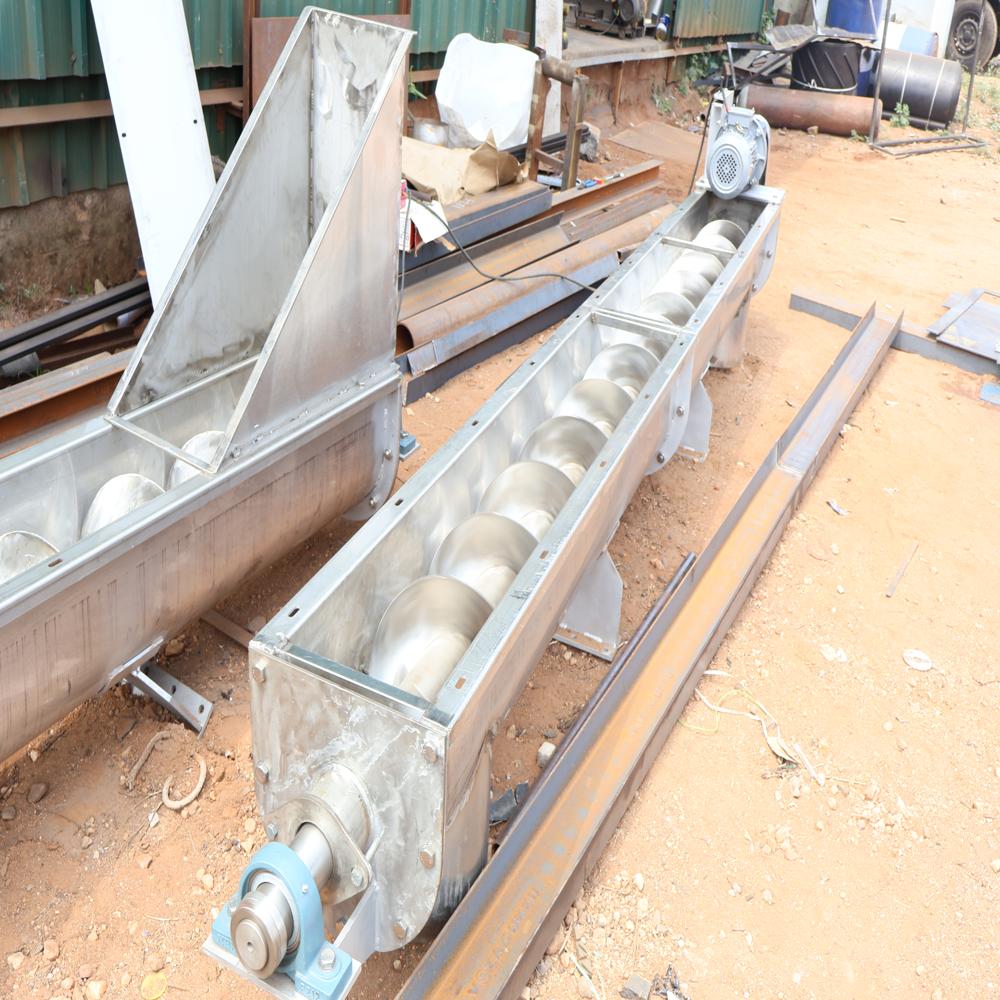

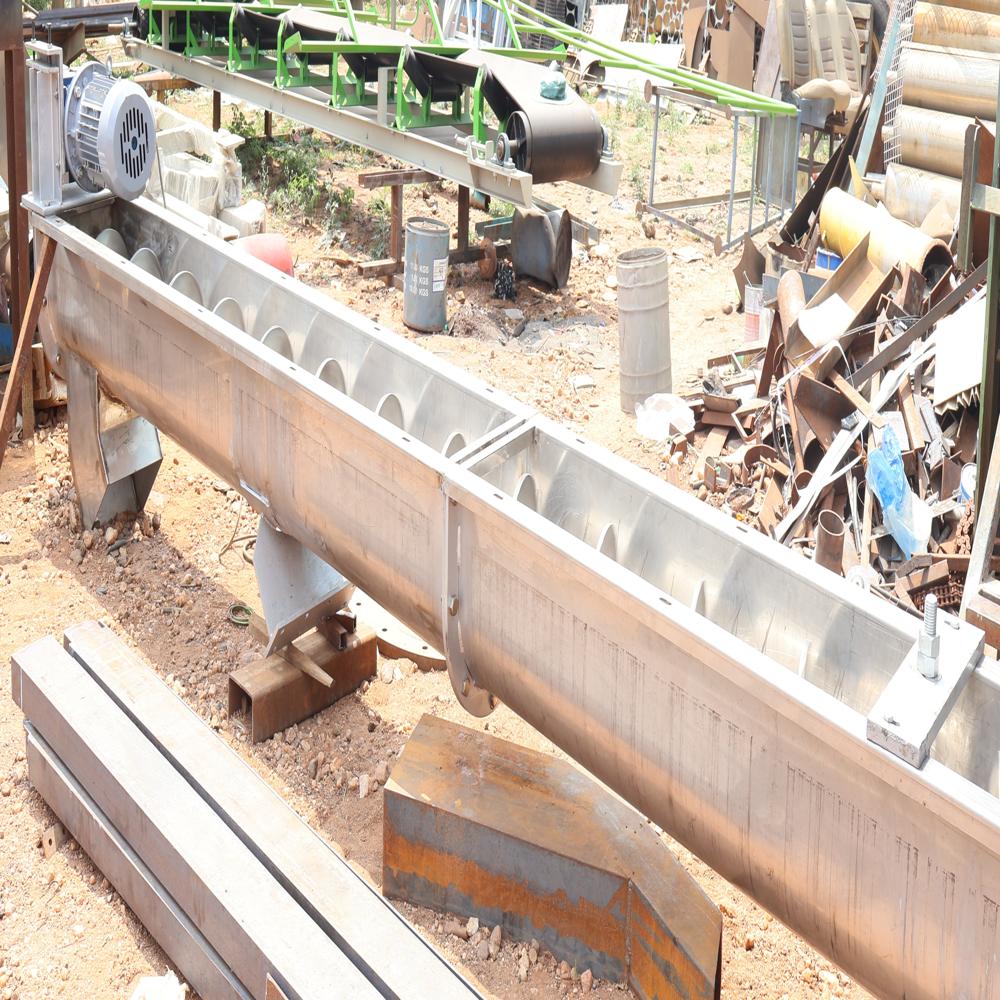

A Stainless Steel (SS) Screw Conveyor is a material handling system designed to transport powders, granules, flakes, and semi-solid materials efficiently through a rotating screw (auger) enclosed within a tubular or U-shaped trough. Manufactured from high-quality stainless steel, it offers excellent corrosion resistance, hygienic operation, and durability, making it ideal for food processing, pharmaceutical, chemical, and industrial applications.

Features:

Corrosion-resistant stainless steel construction
Hygienic and easy-to-clean design
Smooth and continuous material conveying
Low maintenance and reliable operation
Suitable for horizontal, inclined, or vertical conveying

Adaptable Design for Diverse Applications

Our screw conveyors offer full customization in size, inclination, discharge height, and load capacity, serving industries such as food processing, chemicals, pharmaceuticals, and general bulk material handling. The robust SS 304 or SS 316 construction delivers high corrosion resistance, and optional hoppers enhance operational flexibility.

Efficient and Low-Maintenance Operation

Powered by gear motors, these conveyors feature variable speeds to match operational requirements and deliver high efficiency. Their polished or matt stainless steel finish simplifies cleaning and maintenance. Designed for minimal downtime, the conveyor supports continuous material flow with low power consumption (1-5 HP).

Safety and Reliability in Challenging Environments

Built to handle temperatures up to 250C, the screw conveyor ensures safe material transport in both horizontal and inclined configurations. Its strong, shafted U-trough construction protects against contamination and ensures durability even in harsh conditions.

FAQ's of SS Screw Conveyor:

Q: How does the SS Screw Conveyor handle different types of bulk materials?

A: The SS Screw Conveyor is suitable for a wide range of bulk materials thanks to its customizable size (diameter and length), variable speed, and choice of polished or matt stainless steel (SS 304/316) construction, ensuring safe and efficient transport in various industries, including food processing and chemicals.

Q: What is the maximum length and capacity the screw conveyor can be manufactured to?

A: This conveyor can be fabricated with lengths up to 20 meters and a capacity range from 500 kg/h to 20,000 kg/h. Both load capacity and dimensions can be tailored to your specific application requirements.

Q: When should I opt for an inclined mounting, and up to what angle can it be installed?

A: Inclined mounting is ideal for transferring materials between different process levels or to conveyor systems at varying elevations. The SS Screw Conveyor supports customizable installation angles up to 45, offering flexibility to match your plant layout.

Q: Where can this stainless steel screw conveyor be installed?

A: It is designed for installation in environments like food plants, chemical processing units, pharmaceutical factories, and any facility that handles bulk solid or powdered materials. The corrosion-resistant stainless steel structure ensures a safe fit in hygienic and harsh conditions alike.

Q: How easy is it to maintain and clean the SS Screw Conveyor?

A: With its robust construction and polished/matt finish, the conveyor is specifically designed for easy cleaning and minimal maintenance. This reduces operational downtime and helps maintain strict hygiene standards, especially important in food and pharmaceutical industries.

Q: What are the benefits of using a gear motor with the conveyor?

A: A gear motor ensures consistent speed control, high torque for demanding loads, and energy-efficient operation. Variable speed capabilities allow the conveyor to adapt to changing process needs.
