Double Duck Conveyor

Name: Double Duck Conveyor
Brand: KAYA TECHNOLOGY
Price: 180000.0 INR
Availability: InStock

Price 180000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Double Duck Conveyor Specification

Power Source
Electric

Belt Type
Modular or PVC Belt

Thickness
3-8 mm belt (customizable)

Surface Finish
Powder Coated or Painted

Features
Reduces manual labor, energy efficient, quiet operation, continuous movement

Material
Mild Steel, Stainless Steel options available

Type
Double Duck Conveyor

Structure
Mild steel frame with modular belt design

Belt Conveyor
Yes

Roller Conveyor
No

Vertical Conveyor
No

Pneumatic Conveyor
No

Resistant Feature
Corrosion and Rust Resistant

Load Capacity
Heavy Duty (Customizable as per requirement)

Voltage
220-440 V

Power
2-5 HP, depending on application

Speed
Adjustable, typically 10-40 m/min

Usage & Applications
Automated part movement, assembly lines, packaging, warehouses

Installation
On-site installation support provided

Noise Level
Below 65 dB

Conveyor Width
300-1000 mm (customizable)

Operating Temperature
Up to 60C

Control System
Optional Variable Frequency Drive (VFD) panel

Conveyor Height
Adjustable leg support available

Drive Mechanism
Geared motor with direct drive

Safety Features
Emergency stop, side guards, overload protection

Conveyor Length
Up to 30 meters or as per requirement

About Double Duck Conveyor

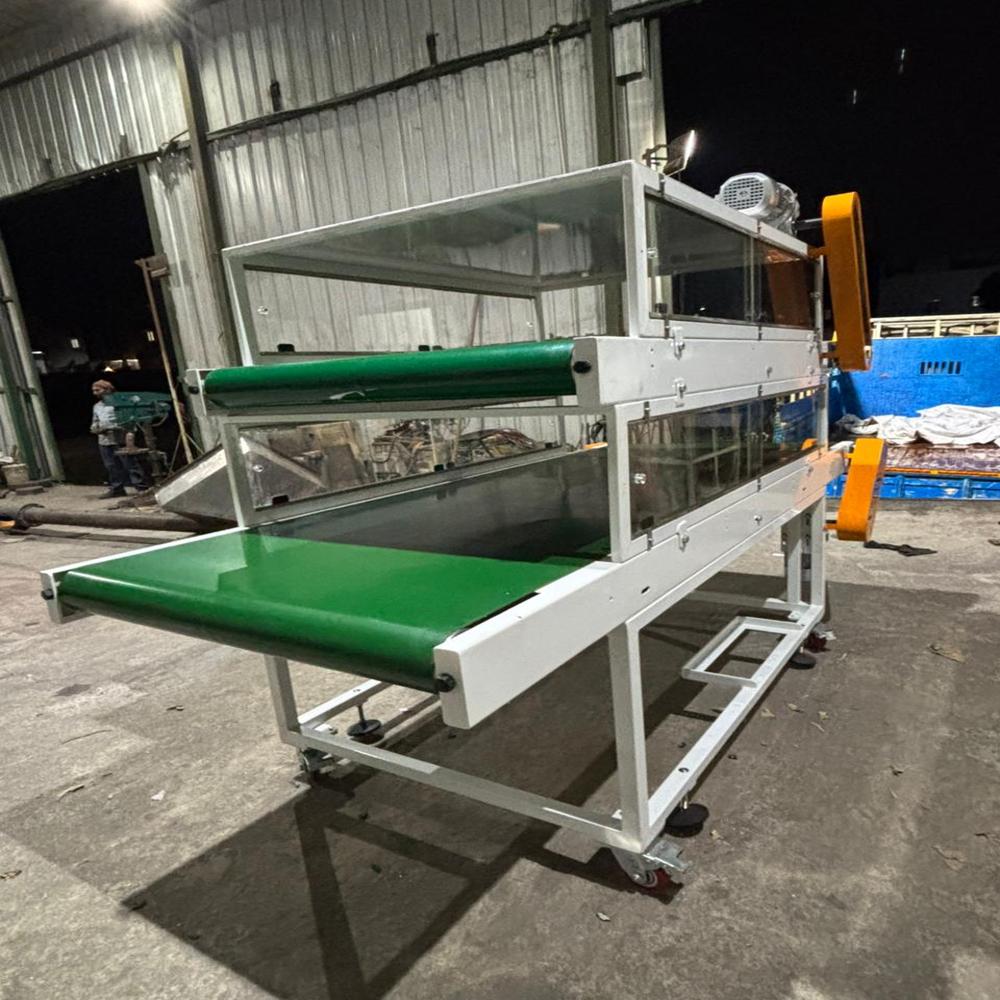

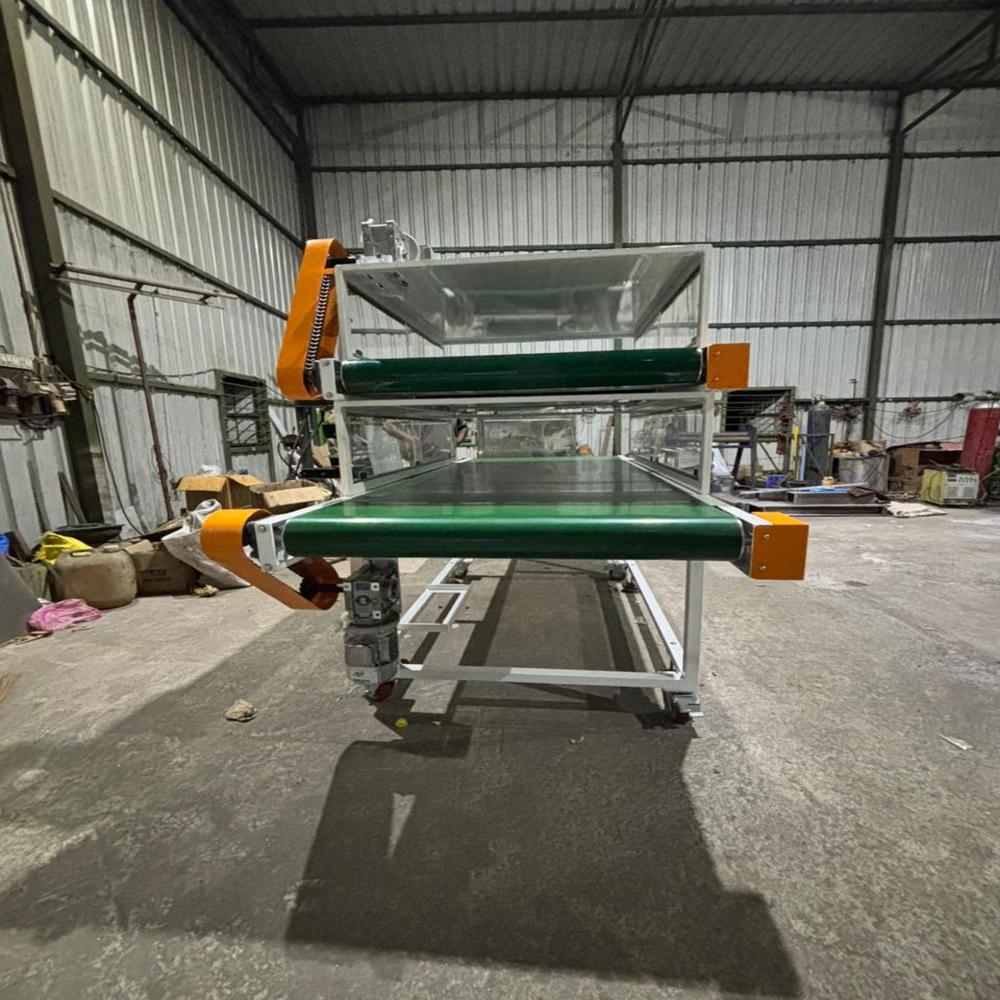

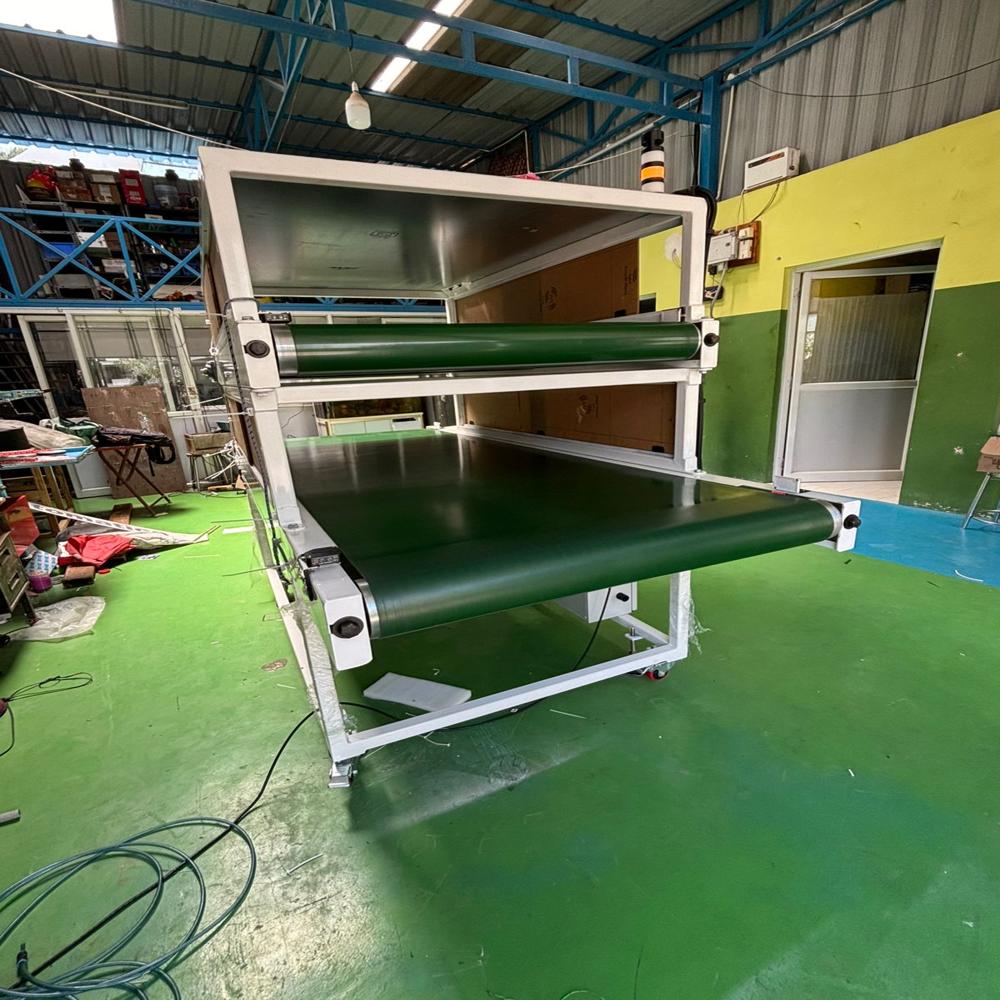

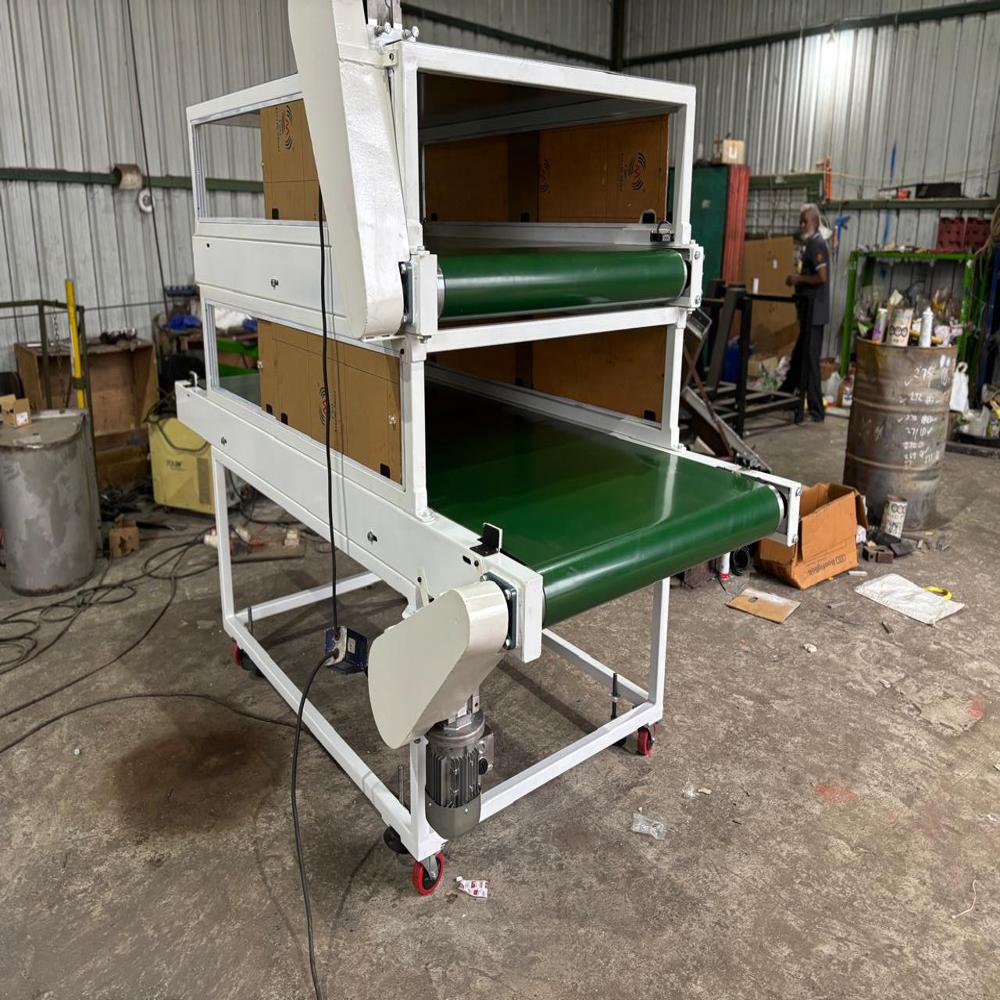

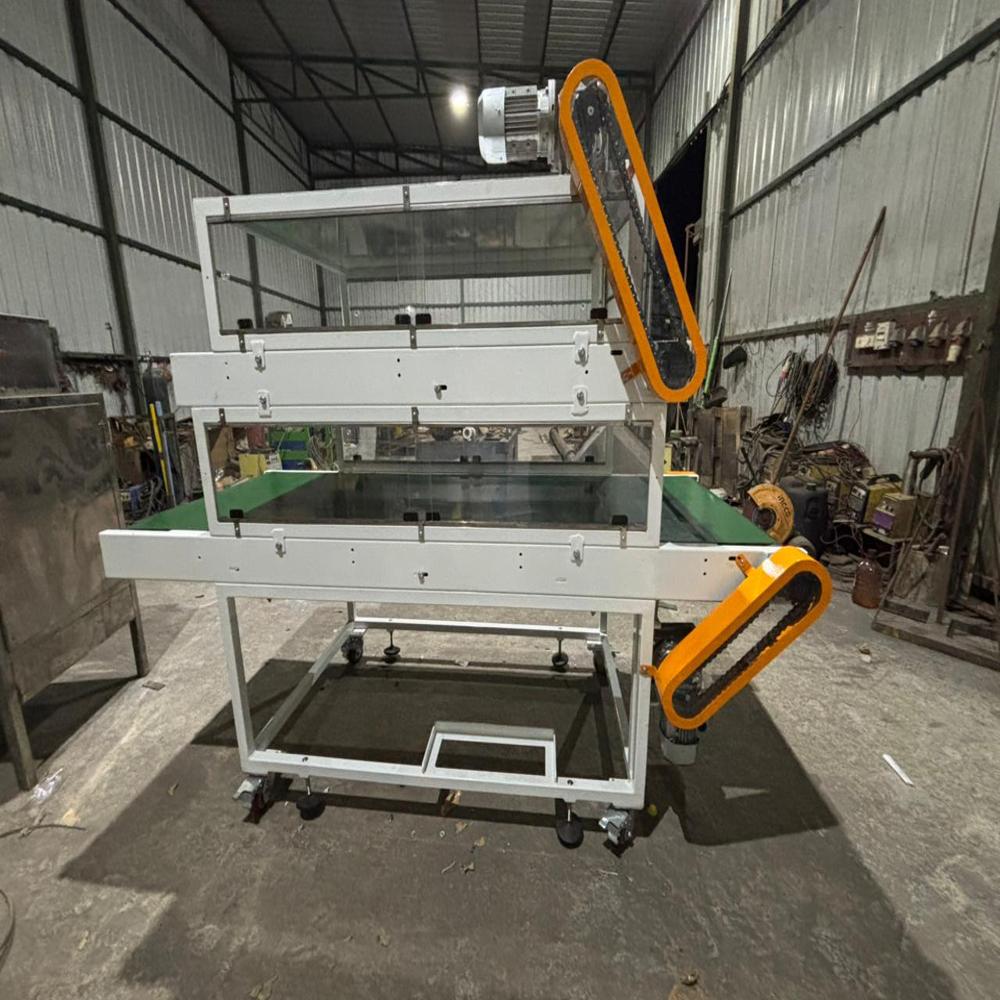

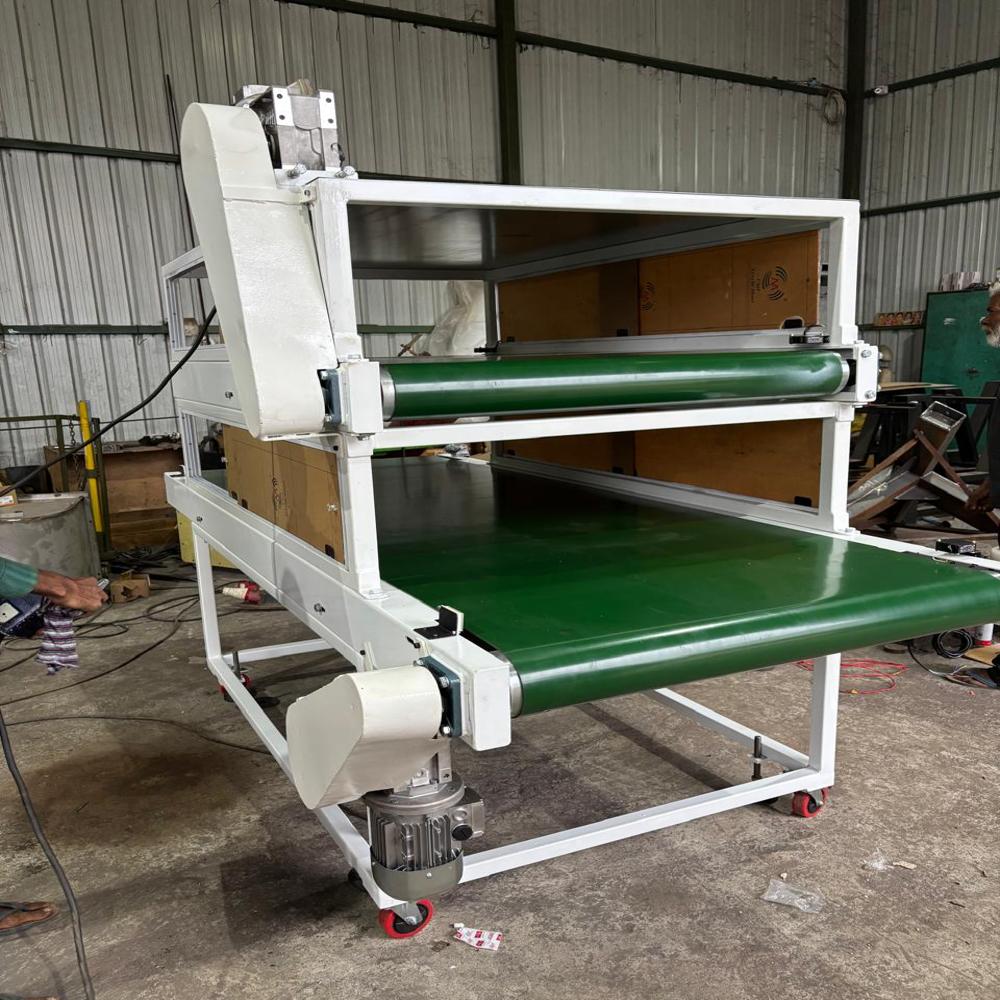

A Double Deck Belt Conveyor is a material handling system designed with two belt conveyors arranged one above the other within a single structural frame. This design allows simultaneous conveying of two different materials or products in the same direction or different directions, while saving floor space and improving operational efficiency.

Customizable Conveyor Design

Adapt the Double Duck Conveyor to perfectly fit your workspace, with customizable width, length, load capacity, and height. The modular belt or PVC options allow seamless integration into various production lines and warehouses, ensuring optimal performance for different industries.

Efficient and Safe Operation

Engineered for maximum efficiency, this conveyor operates with low noise and includes safety features such as emergency stop buttons, side guards, and overload protection. The geared motor with direct drive ensures stable movement, while the optional VFD panel allows precise speed adjustments, promoting both productivity and worker safety.

Durability and Installation Support

Built using high-quality mild steel or stainless steel, with powder-coated or painted surfaces, this conveyor is resilient against rust and corrosion. Our team provides comprehensive on-site installation support across India, ensuring each conveyor is set up for reliable, long-term performance in your facility.

FAQ's of Double Duck Conveyor:

Q: How do I customize the conveyor's width, length, or load capacity for my application?

A: You can specify your required conveyor width (between 300 and 1000 mm), length (up to 30 meters or as needed), and desired load capacity at the time of ordering. Our team will design and manufacture the conveyor to fit your operational needs, offering additional customization for belt type and supporting structure.

Q: What are the main safety features included with the Double Duck Conveyor?

A: The conveyor is equipped with essential safety measures such as emergency stop buttons, side guards along the belt, and overload protection to ensure worker safety during operation and to reduce the risk of accidents or equipment damage.

Q: Where can the Double Duck Conveyor be installed and who handles the installation process?

A: The conveyor can be installed in various settings such as assembly lines, packaging plants, and warehouses across India. Our experienced technicians provide on-site installation support, ensuring optimal setup and integration into your existing workflow.

Q: What materials and finishes are available for the Double Duck Conveyor?

A: You can choose between mild steel or stainless steel construction. Surface finishes include durable powder coating or industrial-grade painting, both of which offer excellent protection against corrosion and rust.

Q: How does the optional Variable Frequency Drive (VFD) panel benefit conveyor operation?

A: The optional VFD panel allows precise control over conveyor speed, making it easy to adjust operating speed between 10 and 40 m/min. This enhances energy efficiency, supports various process requirements, and allows smooth handling of diverse materials or product flows.

Q: What are the typical use cases and industries for this conveyor?

A: The Double Duck Conveyor is ideal for automated material movement in assembly lines, packaging units, and warehouses. It is widely adopted in manufacturing, distribution, and logistics industries, where continuous, efficient, and reliable product transfer is vital.
